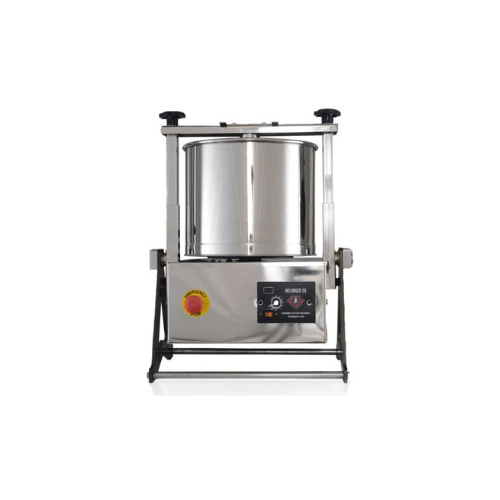

DCM Melangeur #20 Mark 2

Our DCM Melanger 20 Mark 2 (25 lbs/11 kg batch capacity) is designed for artisan food makers and those who want to turn their passion into a new venture. The Mark 2 replaces the DCM 20. Create award-winning chocolate, superior tasting nut butters, pralinés, spreads, and bases for ice cream and gelato, and take your brand to the next level.

Low-impact refining allows for maximum retention of nutritional value while at the same time preserves the shelf-life of the product. Ideal for processing raw ingredients with high nutritional value.

Features:

• Custom-made in the USA.
• Highest-quality, USA-made components and food-grade sealants are used in all DCM Melangers.
• Only all-natural, high-quality granite stones are used in all DCM Melangers.
• Direct Drive from the fully sealed gearbox, with no belts or chains to maintain, designed for continuous use without requiring maintenance.
• Increased Capacity (25 pounds).
• Annual Capacity for chocolate (225 working days): 2813lbs / 1278kg.
• Annual Capacity for Nut Butters (225 working days): 4500lbs / 2045kg.
• This space-efficient machine creates great shear, enabling optimal refining.
• Drum tilting mechanism to easily unload product. The machine can be handled by a single operator.
• The DCM Melanger 20 Mark 2 is available in a 100-120V / 200-230V model, working on Single-Phase. Power customizations are possible, contact us with your request to evaluate feasibility.
• Variable bowl speed from 0 to 120 rpm.
• Heavy-duty frame for reliability and hygiene.
• Easy-to-access Emergency Stop Button.
• Motor overload protection shuts down the entire machine should there be an overload condition, safeguarding your investment.
• A fine tension controller adjusts stone pressure during the refining process, providing artisans with complete control over the process.
• The machine’s maintenance requires only basic know-how and simple tools.
• Spare parts are stocked and delivered quickly to avoid extended downtime.
• 1 year limited manufacturer’s warranty.

Product Specifications:

• Voltage: 110V / 220V
• Power: 50Hz/60Hz
• Motor: ¼ HP.
• Amps: 2/1 A.
• Maximum Continuous Load Current 3 (RMS amps per Phase): 3 amps
• Capacity: 25 lbs/11 kgs of product per batch.
• Approximate Overall Weight: 100 lbs/45kg.
• Approximate Machine Size: 20 x 17.5 x 24 inch / 50 x 44 x 60 cm

Certifications:

• UL, CE, and CSA approved

Origin:

• U.S.A
