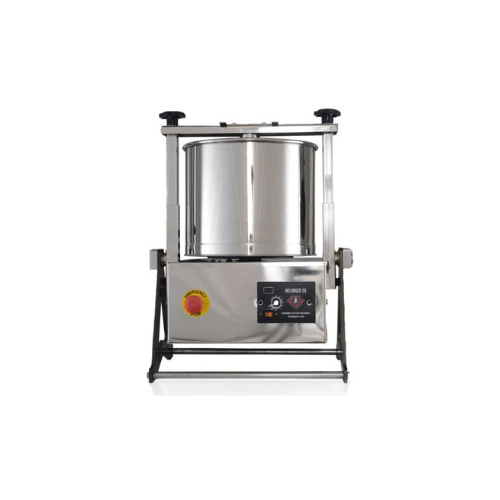

DCM Melangeur #20 Mark 2

Weight	45 kg
Dimensions	50 × 44 × 60 cm

Our DCM Melanger 20 Mark 2 (25 lbs/11 kg batch capacity) is designed for artisan food makers and those who want to turn their passion into a new venture. The Mark 2 replaces the DCM 20. Create award-winning chocolate, superior tasting nut butters, pralinés, spreads, and bases for ice cream and gelato, and take your brand to the next level.

Low-impact refining allows for maximum retention of nutritional value while at the same time preserves the shelf-life of the product. Ideal for processing raw ingredients with high nutritional value.

Features:

Custom-made in the USA.
Highest-quality, USA-made components and food-grade sealants are used in all DCM Melangers.
Only all-natural, high-quality granite stones are used in all DCM Melangers.
Direct Drive from the fully sealed gearbox, with no belts or chains to maintain, designed for continuous use without requiring maintenance.
Increased Capacity (25 pounds).
Annual Capacity for chocolate (225 working days): 2813lbs / 1278kg.
Annual Capacity for Nut Butters (225 working days): 4500lbs / 2045kg.
This space-efficient machine creates great shear, enabling optimal refining.
Drum tilting mechanism to easily unload product. The machine can be handled by a single operator.
The DCM Melanger 20 Mark 2 is available in a 100-120V / 200-230V model, working on Single-Phase. Power customizations are possible, contact us with your request to evaluate feasibility.
Variable bowl speed from 0 to 120 rpm.
Heavy-duty frame for reliability and hygiene.
Easy-to-access Emergency Stop Button.
Motor overload protection shuts down the entire machine should there be an overload condition, safeguarding your investment.
A fine tension controller adjusts stone pressure during the refining process, providing artisans with complete control over the process.
The machine’s maintenance requires only basic know-how and simple tools.
Spare parts are stocked and delivered quickly to avoid extended downtime.
1 year limited manufacturer’s warranty.
